ProX XTF FT6045 | 728 lb Front Loading Lifting Tower | 19.52 ft Max Height with Line Array Adapter

Pro X XTFFT6045  (ProX XTF FT6045)

Front Loading Lifting Tower

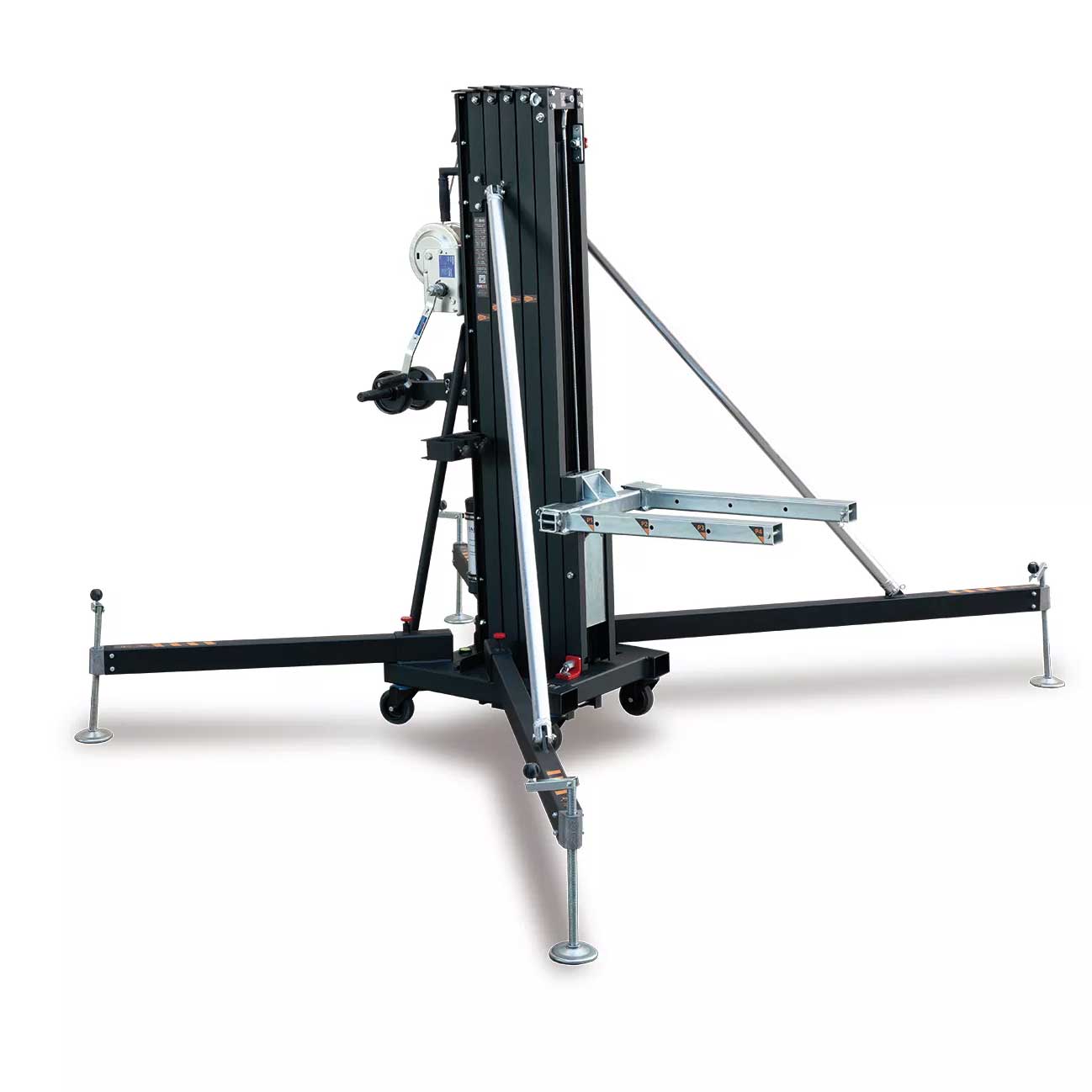

ProX XTF FT6045 is a compact front-loading lifting tower designed to raise line array systems, trussing, and LED screens safely from the floor. Its front-loading design helps reduce lifting effort during setup, while the compact folded size and integrated castors make it a practical solution for touring, rental, staging, and event production applications.

ProX XTF FT6045 Competitive Differences

• Front-loading design allows the load to be raised from the floor with reduced setup effort
• Includes XTF ATF17PA line array adapter with hanging ring for line array applications
• Supports up to 330 kg / 727.5 lb with a maximum lifting height of 5.95 m / 19.52 ft
• Compact folded height of 1.72 m / 5.64 ft for easier transport and storage
• Built by FANTEK in Valencia, Spain and compliant with CE and DGUV V17/18 standards

ProX XTF FT6045 Description

The ProX XTF FT6045 is built for dependable overhead lifting in professional production environments where safety, compact transport, and efficient deployment matter. Designed for line array systems, trusses, and LED screens, this tower combines substantial lifting capacity with a front-loading system that allows the load to be picked up directly from the floor.

This lifting tower uses patented Dynamic Overlap stacking trusses with 5 masts, manufactured from extruded aluminum alloy EN-AW 6082 T6 and TIG welded by certified welders for strength and safety. The reinforced steel base with outriggers is engineered to support heavy loads at full working height, while adjustable screw-jacks and an integrated bubble level help achieve accurate leveling on site.

For added operator protection, the telescopic lifting mechanism can stop safely at any Pin Locking System position, allowing the pins to take the load off the wire rope. The integrated DYNSYS system is designed to monitor the operating condition of the tower by controlling the torque applied on the winch and preventing continued lifting if that limit is exceeded. WIREDRIVE technology further improves operation by reducing the wire angle between the winch drum and the first mast.

With its folded height of just 1.72 m / 5.64 ft and castor-equipped design, the tower is easy to move, transport, and store compared to larger lifting systems. This makes the ProX XTF FT6045 a strong fit for concerts, trade shows, theaters, discos, broadcast environments, TV production, and general event staging where compact footprint and high lifting performance are both essential.

XTF FT6045 Features

• Front-loading lifting tower for line array systems, trussing, and LED screens
• Raises the load directly from the floor
• Includes XTF ATF17PA line array adapter with hanging ring
• Patented Dynamic Overlap stacking truss design with 5 masts
• Constructed from extruded aluminum alloy EN-AW 6082 T6
• TIG welded by certified welders
• Reinforced steel base with outriggers for stability
• Pin Locking System helps transfer load off the wire rope at locking positions
• DYNSYS system helps control winch torque for safer lifting operation
• WIREDRIVE multidirectional grooved pulley reduces wire angle
• Adjustable screw-jacks and integrated bubble level for accurate leveling
• Compact folded design with castors for easier handling and maneuverability
• CE and DGUV V17/18 certified compliant
• Made by FANTEK in Valencia, Spain

XTF FT6045 Specifications

• Maximum Height: 5.95 m / 19.52 ft
• Minimum Height: 1.72 m / 5.64 ft
• Maximum Load Capacity: 330 kg / 727.5 lb
• Winch Capacity: 900 kg / 1984.16 lb
• Steel Loading Forks: 600 mm / 23.62 in
• Included Adapter: XTF ATF17PA Line Array Adapter with Hanging Ring
• Suggested Shipping Method: LTL
• Shipping Configuration: 2 pcs on 1 skid
• Shipping Dimensions: 48 x 40 x 73 in
• Shipping Weight: 775 lb
• UPC: 798239008200

What's In The Box

• ProX XTF FT6045 lifting tower
• XTF ATF17PA line array adapter with hanging ring
